CSR Generation for Members

How X-Road member organizations generate certificate signing requests for SIGN and AUTH keys.

Purpose

This guide explains how an X-Road member organization should generate a Certificate Signing Request (CSR) for use in the Security Server. In practice, members typically need CSRs for:

  • signing keys, used to identify the member organization and sign exchange messages
  • authentication keys, used to establish secure TLS connections between Security Servers

The standard workflow uses the Security Server management interface. For teams using a console-based helper, NRDEX also provides a downloadable Python script:

Prerequisites

Before generating a CSR:

  • the operator should have the Security Officer role
  • the relevant security token should be available
  • the token should be logged in from the KEYS AND CERTIFICATES view using the correct PIN
  • the member should know which approved Certification Authority must sign the certificate
  • the required Distinguished Name fields should be confirmed with the governing authority or CA

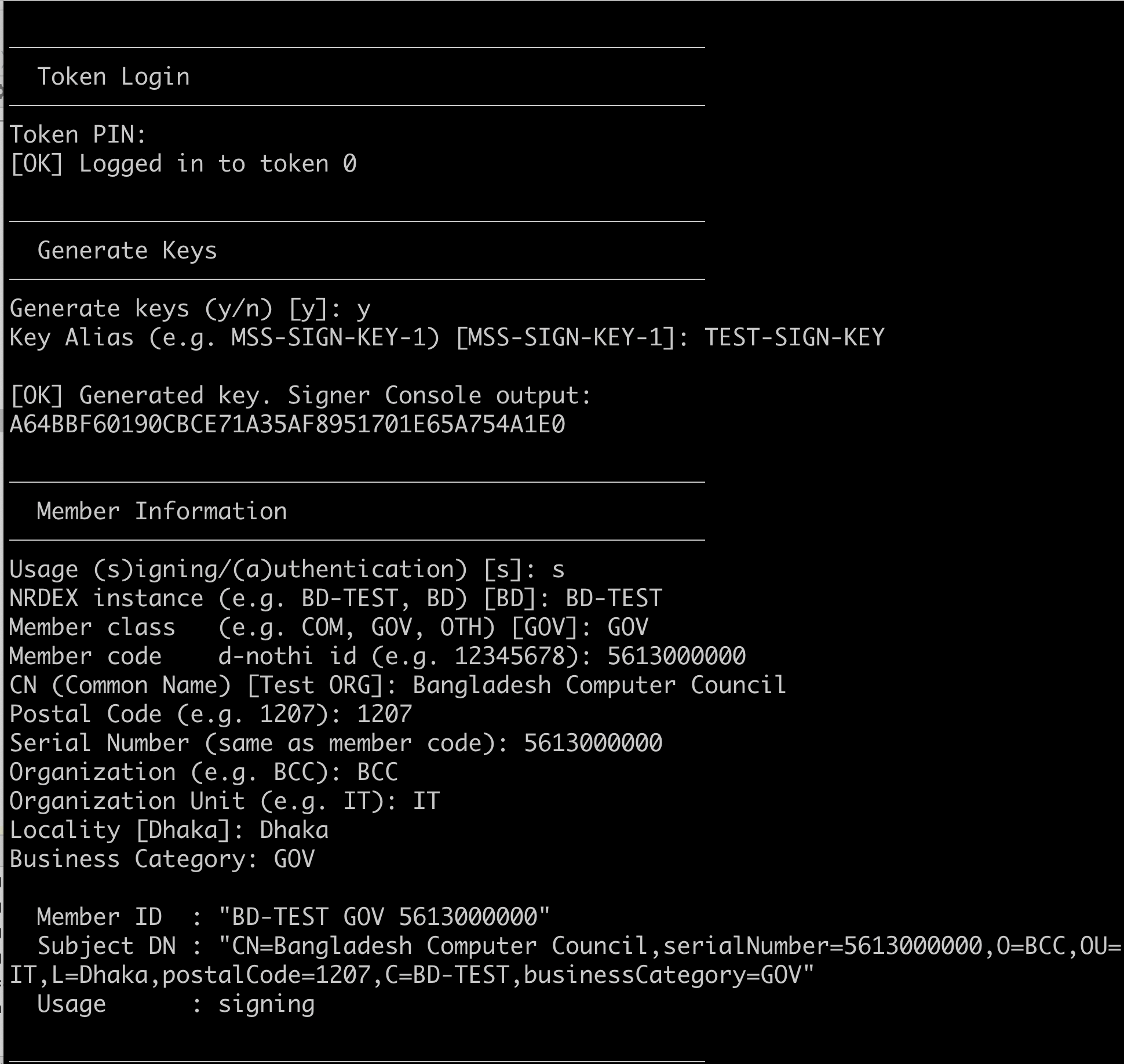

Generate a CSR for a SIGN key

SIGN keys are tied to the member or subsystem and are used to provide message-level trust and non-repudiation.

  1. Download the CSR Generation script.
  2. Move to xroad user
  3. run the python script
  4. Provide required arguments
  5. After generating CSR, attached it to available keys. You can attach it to last entry of key.
  6. Then a CSR is generated and saved to specific folder.
  7. use the CSR to generate certificate using ca portal.

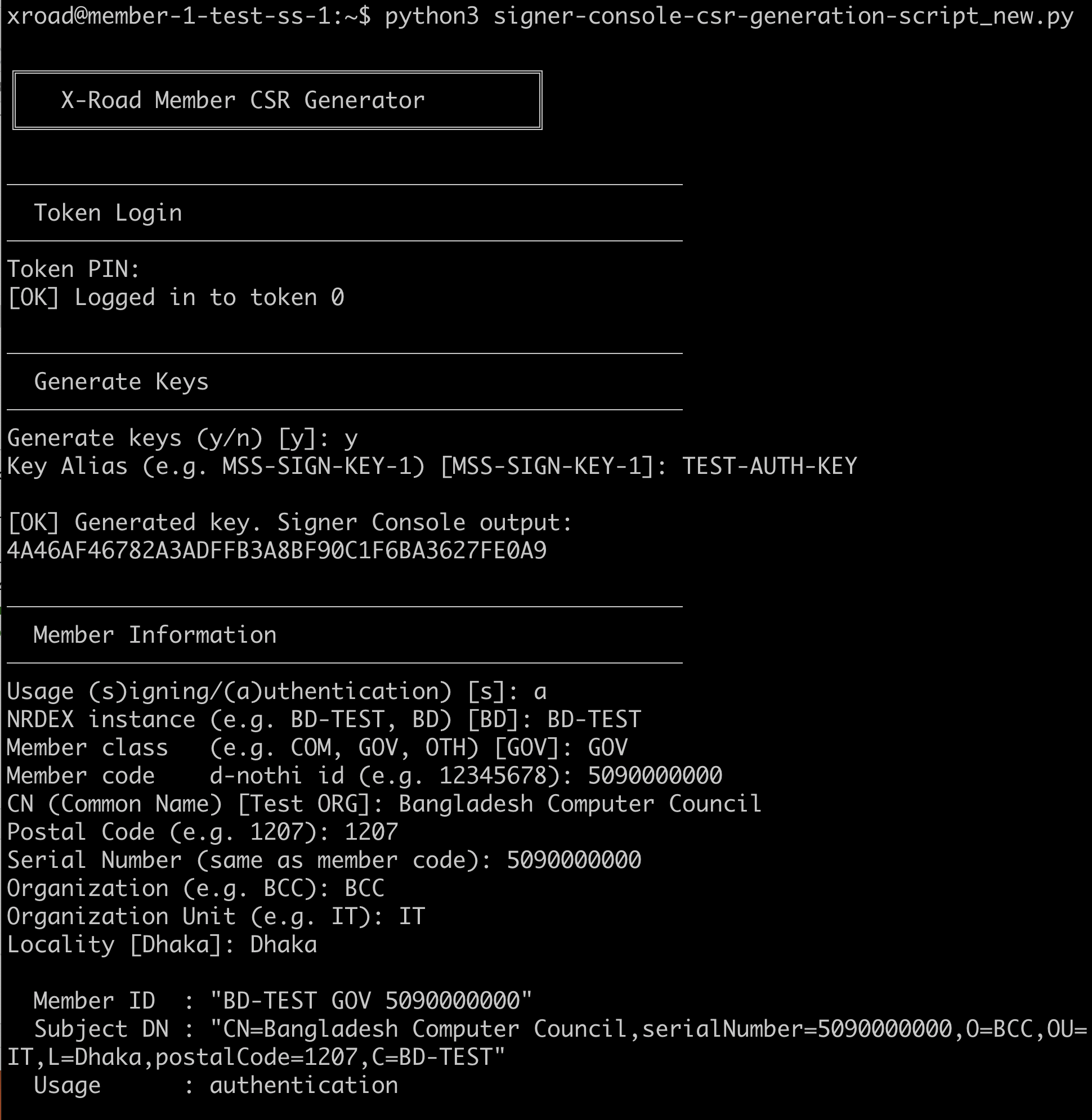

Generate a CSR for an AUTH key

AUTH keys are used to authenticate the Security Server itself and establish secure server-to-server transport.

  1. Download the CSR generation script.
  2. Move to xroad user
  3. run the python script
  4. provide required arguments
  5. After generating CSR, attached it to available keys. You can attach it to last entry of key.
  6. Then a CSR is generated and saved to specific folder.
  7. use the CSR to generate certificate using ca portal.

What happens next

After the CA signs the CSR:

  1. import the returned certificate into the Security Server
  2. complete any required registration or approval step in the ecosystem
  3. verify that the key and certificate appear in the expected state
  4. proceed with member onboarding or service publication

Operational notes

  • Keep CSR files and returned certificates associated with the correct member, subsystem, and environment.
  • Use separate handling for test and production certificates.
  • Confirm the exact Distinguished Name requirements before generating the request to avoid rework.
  • Prefer approved automation for renewal and rotation when supported.
